563-0400-01
Banana Test Connector, 4mm, Socket, Panel Mount, 10 A, 50 V, Silver Plated Contacts, Green
- Manufacturer:
- DELTRON COMPONENTS DELTRON COMPONENTS
- Manufacturer Part No:
- 563-0400-01
- Order Code:
- 1101115
- Also Known As:
- GTIN UPC EAN: 5056414505780
- Technical Datasheet:
- 563-0400-01 Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Socket
- :
- Panel Mount
- :
- 10A
- :
- Silver Plated Contacts
- :
- Green
- :
- Brass
- :
- Solder
- :
- -
Technical Documents (2)
Product Overview

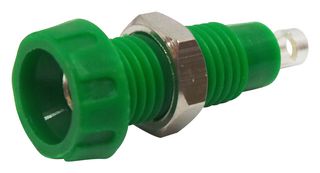

The 563-0400-01 is a 4mm panel-mount Socket with solder bucket connection. It has green polypropylene insulant, silver-plated BS2874 brass pin and nut. Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs and it is suitable for panel up to 13.5mm thick.
- Green 4mm Panel Socket - Solder Bucket Connection
- Panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs
- Suitable for panels up to 13.5mm thick
- Connection via a solder bucket
- Insulant: Polypropylene
- Pin: Brass BS2874 Silver Plated
- Nut: Brass BS2874 Nickel Plated
- Current Rating: 10 Amps
- Nominal Working Voltage: 250V RMS
- Contact Resistance: 10mR
- Maximum Temperature RTI: +147°C
- Minimum Temperature: -20°
- Recommended Temperature: 10A @ 55°C
- Voltage Breakdown: 5000V
- Conductor Size: 1.5mm²
- Fixing Torque: 0.4Nm
Applications
Test & Measurement
Also Known As
GTIN UPC EAN: 5056414505780
