Többre van szüksége?
Mennyiség | |
---|---|
1+ | 1 065,150 Ft |
10+ | 874,800 Ft |
25+ | 757,350 Ft |
50+ | 696,600 Ft |
100+ | 643,950 Ft |
Termékinformáció
Termékáttekintés

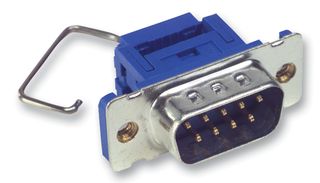

The SPC15406 is a 9-way DE D-sub IDC Plug with gold plated stamped brass contacts and PBT + glass fibre reinforced insulator as per UL94V-0 standard. This male connector has IDC/IDT termination and it accepts 26 to 28AWG wire gauge. The D-sub Connector allows highly reliable mass termination of standard 0.05-inch pitch round conductor flat ribbon cable. Gas-tight junction with each conductor at 4 places, internal transition from standard 0.055-inch contact spacing which allows termination of standard 0.05-inch ribbon cable. No special cable preparation is required and mating area has duplex plating.
- 1A Rated current
- 15mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- -55 to +105°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Alkalmazások
Communications & Networking
Műszaki adatok
Standard
-
DE
Cable Mount
Gold Plated Contacts
Plug
9Contacts
Crimp
Brass
Steel Body
Műszaki dokumentumok (1)
Alternatíva a következőhöz: SPC15406
3 termék található
Társított termékek
5 termék található
Jogszabályok és környezetvédelem
Az ország, amelyben az utolsó jelentősebb gyártás történt meg.Származási ország:Taiwan
Az ország, amelyben az utolsó jelentősebb gyártás történt meg.
RoHS
RoHS
Termékmegfelelőségi tanúsítvány
