MAX14919EVKIT#

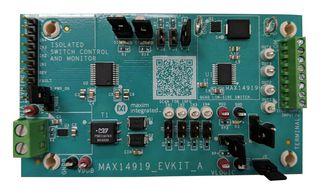

MAX14919 evaluation kit (EV kit) provides a proven design to evaluate the MAX14919 industrial-grade quad low-side switch with 140mΩ (typ) RON and ±1kV/42Ω surge protection. The MAX14919 EV kit features an isolated power and signal interface to provide pin-level control of the four low side switches in the MAX14919. The EV kit also features reverse-current detection to prevent damage caused by miswiring faults at output and return terminals. The EV kit comes with the MAX14919AUP+ (20 TSSOPEP, 6.5mm x 6.4mm footprint) device installed.

• Robust operation with a wide range of input voltages and load conditions
• Surge protection with up to ±1kV IEC61000-4-5 at output to ground
• LED indication of fault and reverse-current detect conditions
• Multiple fault-condition indications
• Includes a FET for output reverse-current protection
• Inrush current control to allow up to 2x the maximum load current
• Resistor-selectable options to set maximum allowable load current
• Wide logic-voltage range from +1.8V to +5.5V and isolated supply input range from +3V to +5.5V
