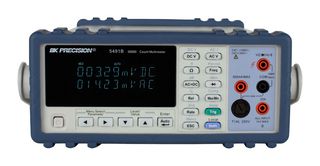

BK5491B

The 5491B multimeter takes typical measurements such as volts, ohms and amps with great accuracy, stability and basic VDC accuracy of 0.02%. The meter is also capable of measuring frequency, period, continuity and performing diode tests. Readings can be taken at a maximum rate of 25 readings/sec with measurement rates selectable between slow, medium and fast.

• Up to 50,000 count display resolution
• Dual display to indicate two measurements simultaneously
• AC + DC True RMS
• AC volt and amp measurement over wide frequency range
• Limit mode for Pass/Fail testing
• Built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Compare
• CATI (1000 V)/CATII (300 V) Protection
• USB (Virtual Com) and RS232 interface
• SCPI compatible

Alkalmazások

Industrial, Maintenance & Repair, Test & Measurement

Tartalom

Test leads, Power cord, Spare fuse and Operation Manual, Calibration certificate and test report

Megjegyzések

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
