3105A 010500

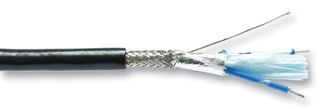

The 3105A 010500 is a 1-pair 500ft 22AWG Shielded Cable with stranded tinned copper conductors and Datalene® foam polyethylene insulation. This EIA industrial RS-485 PLTC/CM twisted pair multi-conductor cable comes with a drain wire, UV-resistant black PVC jacket, Beldfoil® aluminium foil-polyester tape shield (100% coverage) and a tinned copper braid shield (65% coverage). This multi-conductor cable delivers low voltage analogue data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

• CPR: Eca
• 266.892N Maximum recommended pulling tension
• 36.091pF/m Nominal capacitance conductor to conductor
• 78% Nominal velocity of propagation
• 48.2307Ω/km at 20°C Nominal conductor DC resistance (DCR)
• -20 to 60°C Operating temperature range

Alkalmazások

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
