ME813AU-WH50C

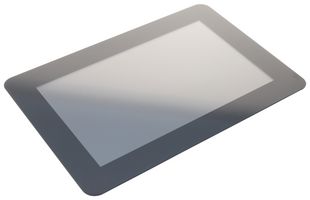

The ME813AU-WH50C from Bridgetek is a TFT active matrix LCD display module. This development module for Bridgetek’s FT813, Embedded Video Engine (EVE) graphics controller IC. This module behaves as a USB device with an FT4222H USB to SPI bridge built on-board so that module can be accessed from a PC or any other USB host. The ME813AU-WH50C module includes a 5inch 800 x 480 TFT LCD panel with capacitive touch screen and an audio amplifier to drive an 8ohm/1W speaker.

• Maximum supply voltage of 5.5V, 400mA typ operating current (with LCD and backlight LED on)
• Ready to use 5inch WVGA LCD module, 16.7M display colours, 800(RGB) x 480 dots pixels
• Bright backlight LED with dimming (18 white), supports portrait and landscape display mode
• Supports resistive touch with pressure sensing
• Supports mono audio from FT813 or external source
• On board audio amplifier for driving an external speaker
• Support USB bus power
• Support USB high speed connection to PC or other USB host
• Operating temperature range from -20°C to 70°C

Alkalmazások

Imaging, Video & Vision

Tartalom

ME813AU-WH50C display module, CleO-SPK1 an 8ohm/1W speaker enclosure with connecting wires to ME813AUWH50C, VA-FC-1M-BKW flat USB A to micro B cable 1M black and white, VA-FC-1M-BLW flat USB A to micro B cable 1M blue and white.
