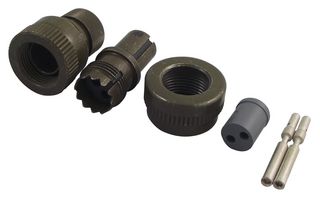

CA3106E10SL-4SF80DN
Circular Connector, CA, MIL-DTL-5015 Series, Straight Plug, 2 Contacts, Crimp Socket, Threaded
Többre van szüksége?
| Mennyiség | |
|---|---|
| 1+ | 27 750,600 Ft |
| 5+ | 26 073,900 Ft |
| 10+ | 24 397,200 Ft |
| 25+ | 23 461,650 Ft |
| 50+ | 22 680,000 Ft |
| 100+ | 21 428,550 Ft |
Termékinformáció
Termékáttekintés
The CA3106E10SL-4SF80DN from ITT Cannon is CA series, MIL-DTL-5015 series equivalent straight plug with 2 contacts. CA series connectors are available in wide range of connector styles and sizes. The design meets MIL-DTL-5015 standards which is optimized for automated high volume production and adaptable to UL applications. It provides high sealing grades, mechanical robustness which offers high density contact arrangements in a miniature circular shell and combines high coupling durability. This is most versatile connector for an accurate connects and disconnect in environmentally challenging situation.
- Threaded coupling, quick mating
- Shock and vibration proof with secured locking
- 500 mating cycles, IP67/68/69k environmental resistance
- Operating temperature range of -55°C to +125°C
- Insulation resistance is <gt/> 1000Mohm
- Resilient polychloroprene (neoprene) insulator
- Moisture and corrosion resistant
- Operating voltage is 50VAC
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy crimp socket contacts with silver plating
Alkalmazások
Commercial, Industrial
Műszaki adatok
CA
Straight Plug
Crimp Socket
10SL-4
Olive Drab Chromate over Cadmium
Silver
Environmentally Sealed
MIL-DTL-5015 Series
2Contacts
Threaded
Aluminium Alloy Body
Copper Alloy
N
No SVHC (17-Dec-2014)
Műszaki dokumentumok (1)
Jogszabályok és környezetvédelem
Az ország, amelyben az utolsó jelentősebb gyártás történt meg.Származási ország:Great Britain
