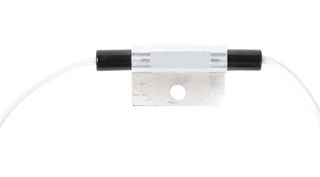

TRS3-110MLR00

TRS3-110MLR00 is a TRS3 series thermal reed switch. It is a highly reliable, precise temperature-sensitive switch ideal for energy conservation. Its unique proprietary design features a magnet and a temperature-sensing soft ferromagnetic substance called Thermorite®. The material’s magnetic flux density decreases as the temperature increases turning it into a paramagnetic substance at the Curie temperature. Typical applications include temperature detection and overheat monitoring of electric appliances, heat-retention heater control for rice cookers, defrost for air conditioners and vending machines, roll heater temperature control for copying machines, radiator water temperature detection for automotive electric fan control.

• Maximum opening/closing power is 35W
• Operating temperature of 110°C
• Make contact type, L shape fixing bar
• Wire harness type, 100V rated voltage
• High-speed response and long operational life
• Excellent environmental durability and extremely simple circuit design
• Compact, light and easy to handle
• Dust, explosion and corrosion-proof
• Excellent temperature accuracy of ±2.5°C
