92 89 04

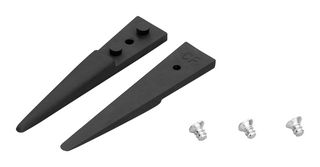

92 89 04 is a plastic and carbon fibre replaceable tip for 92 81 04. It is used for particularly demanding precision work: tough and highly resistant to corrosion. Maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components. It has a handcrafted body: polished edges and an excellent matt, scratch-free and non-reflective surface. It features a high-quality premium stainless steel body: with high-temperature resistance and excellent corrosion resistance to most chemicals, salts and acids. The interchangeable tips are made from 30% carbon fibre-reinforced plastic: very good electrical and thermal conductivity, are scratch-proof and with high abrasion resistance. The interchangeable, carbon fibre-reinforced plastic tips have a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled manner the differences in potential between the operator and electronic components.

• Plastic and carbon fibre tips, straight tips, blunt tips, smooth gripping surface
• For use in the electronics industry, watchmaking and jewellery
• Tips have good chemical resistance to most oils, lubricants, fuels and nonpolar solvents
• Tips are ESD, blunt tips offer a firm grip but won't damage surrounding components
• Dimension is 40 x 8 x 4mm
• 1.00mm tip thickness, 2.00mm tip width
• Industry electronics sectors, non-magnetizable (100%)
• Electrically dissipative behaviour

Figyelmeztetések

Do no use on live circuits. Always switch off power. Always wear approved eye protection.
