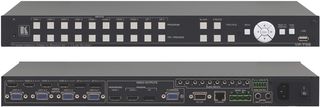

VP-732

Versatile presentation switch with four HDMI, two DisplayPort and four user-definable video inputs. Dual scalers with independent outputs and Kramer PixPerfect™ precision scaling technology; up or downscale to HDMI, DisplayPort or VGA output with selectable refresh rates up to 4K Ultra-HD.

• Supports multiple resolutions up to 4K Ultra-HD
• Fast Fade-Thru-Black (FTB™) switching between sources
• K-IIT XL™ Image insertion technology with picture-in-picture, picture-and-picture and split screen capabilities
• Quick selection of programs, previews and PIP sources via the 10 input selection buttons
• Multiple aspect ratio selections, scale/zoom function and Audio-Follow-Video support
• Advanced noise reduction and DSP technology
• Embed/De-embed audio on HDMI/DisplayPort inputs and outputs
• Stereo speaker output on 4-pin terminal connector (10W per channel into 8Ω)
• Built-in video Proc-Amp; colour, hue, sharpness, contrast and brightness are set individually for each input
• Front panel controls with OSD, RS-232, Ethernet and IR remote for flexible control options
• Inputs: 4x HDMI in, 4x universal 15-pin HD, 2x DisplayPort in, 10x 3.5mm audio in, S/PDIF RCA in, RJ45, RS232, USB
• Outputs: 2x HDMI out, 1x VGA out, 1x DisplayPort out, 5-pin terminal block out, 4-pin terminal block out, S/PDIF RCA out
• 1U 19" rack mountable enclosure

Tartalom

Switcher/Scaler, UK mains lead, rack ears and IR remote
