EL-SGD 70-ATP

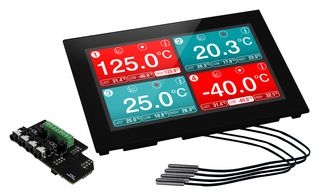

The EL-SGD 70-ATP from Lascar is a panel mountable four-channel temperature data logger based on Lascar’s PanelPilotACE platform. The product includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours. Data can be downloaded via USB using Lascar’s free Device Utility software. For advanced users, the interface can be extensively customised using Lascar’s free drag-and-drop PanelPilotACE Design Studio software.

• Probe measurement range from -40°C to +125°C (-40°F to +257°F) with 0.01°C (0.01°F) resolution
• Dimension is 186mm (7.3”) x 122mm (4.8”) x 21mm (0.8”)
• USB communication protocol
• 4 channel temperature data logger with real-time readings, trend graphing and data analysis tools

Alkalmazások

Test & Measurement

Tartalom

7” PanelPilotACE display with mounting kit (SGD 70-A), Four-channel thermistor add-on board (S70-TP), 4 x 1m thermistor probe with 3.5mm plug (EL-PROBE2-1.0M-TP), Mini USB cable (CABLE USB A-MF).
