FGG.00.305.CLAD35

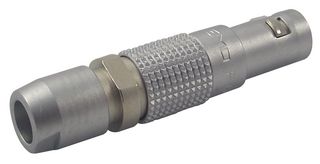

The FGG.00.305.CLAD35 is a 5-way Circular Connector, 00 series, straight plug with cable collet. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with five solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 00 series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• PEEK insulator
• G Key standard
• IP50 Protection rating
• 5000 Maximum matings
• 8.7mΩ Maximum resistance
• 0.35mm Contact diameter
• 360° Screening for full EMC shielding
• 5 Low voltage insert configuration

Alkalmazások

Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
