DM320106

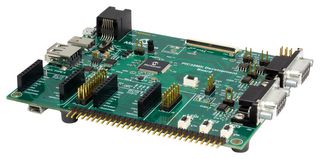

The DM320106 from Microchip is a PIC32MK general purpose (GP) development kit. The PIC32MK GP development kit offers a low cost solution for developers looking to build projects with the PIC32MK series of devices, featuring a rich assortment of CAN, USB, ADC and GPIO type inputs. This board also includes a Soloman Systec SSD1963 graphics driver and 30-Pin connector to enable graphics applications with available LCD panels. Additionally this board supports USB programming and debug via the on-board PIC Kit On Board (PKOB) eliminating the need for external programming hardware.

• 4 CAN 2.0 ports with transceivers, 2 supporting DB9 type connectors
• Dual full speed USB supporting simultaneous host/device includes USB-C hardware compatible connector
• Dual MikroBUS CLICK headers supporting the wide array of CLICK boards
• One XC32 header for supporting Microchip add-on modules for audio and Bluetooth
• 30 pin general IO header for analogue and digital signal connections

Alkalmazások

Embedded Design & Development

Tartalom

PIC32MK GP development board, Type-A to micro-B USB cable.
