MCP2515DM-PTPLS

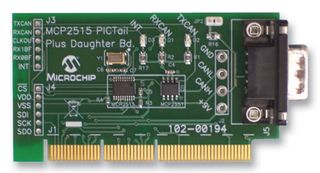

The MCP2515DM-PTPLS is a simple Controller Area Network(CAN). The MCP2515 PICtail Plus daughter board designed to be used with boards containing the PICtail Plus connector. The board has PICkit Serial connector for interfacing to PICkit Serial Analyzer tool. The CAN node consists of the MCP2515 stand slone CAN controller that implements CAN specification, version 2.0B which is capable of transmitting and receiving both standard and extended data and remote frames. And MCP2551 a high speed CAN transceiver which is fault tolerant device that serves as interface between a CAN protocol controller and physical bus. The MCP2551 device provide differential transmit and receive capability for the CAN protocol controller. The PICkit Plus and PICkit Serial connectors allow the board to be interfaced to a variety of PICmicros so that the user can develop a CAN node. The board also contains headers or test points for most of MCP2515 pins to allow the external functions to be monitored/evaluated.

• PICtail Plus connector for attaching to Explorer 16 and other main boards with the connector
• DB9 connector for connecting to CAN networks using the pseudo standard pinout
• Footprint for terminal block connector for the CAN bus
• One shot mode ensures message transmission is attempted only once
• Databyte filtering, Start of Frame (SOF) output
• Supports 1 Mb/s operation
• High noise immunity due to differential bus implementation

Alkalmazások

Communications & Networking, Automotive

Tartalom

MCP2515 PICtail Plus Daughter Board, CD ROM

Megjegyzések

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
