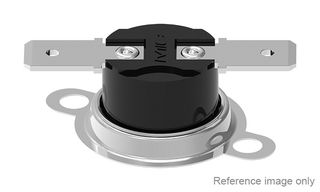

MP-11-140/-/E121B14H221
Thermostat Switch, Snap Action, 140 °C Reset, Normally Closed, 10A at 250V, Flange Mount
Többre van szüksége?
| Mennyiség | |
|---|---|
| 1+ | 1 081,350 Ft |
| 10+ | 972,000 Ft |
| 25+ | 882,900 Ft |
| 50+ | 810,000 Ft |
| 100+ | 729,000 Ft |
| 200+ | 648,000 Ft |
Termékinformáció
Termékáttekintés
MP-11-140/-/E121B14H221 is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 140°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 250V at 10A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.
- Manual reset thermostat
- Heat resistant is 170°C
- Resistance between terminals is below 50mohm at DC5V/0.25A
- Insulated resistance is above 100Mohm with DC500V between terminals and cap
- Dielectric strength is 1500VAC at 1minute between terminals and cap
- Set temperature range from 15°C to 250°C
- Certified as per GB14536. 1-2008, GB14536. 10-2008, GB/T22687-2008, EN60730-1, EN60730-2-9 standards
- AgNi/Cu (T2) stationary/movable contact, brass stationary arm, PF case/top cover, aluminium cap
- Bimetal disc, alloy copper movable arm, steel (nickel plated) reset pin, ceramic actuator pin
- Reset 140°C ±4°C temperature
Alkalmazások
Temperature Controllers, Industrial, Automation & Process Control, HVAC
Tartalom
x1 Thermostat switch.
Megjegyzések
Secure flange mounting to surfaces.
Műszaki adatok
-
Normally Closed
Flange Mount
MP Manual reset Thermostats
140°C
Quick Connect
10A at 250V
To Be Advised
