MP720013 EU-UK

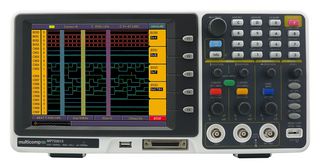

The Multicomp Pro MP720013 is a 2-in-1, 8-bit, 100MHz mixed signal oscilloscope with logic analyser. Featuring an 8" colour LCD display, USB data transmission support, 20 group automatic measurement options, auto-scale functionality, FFT and 16 digital channels.

• Large 8" LCD colour display (640x480)
• Supports multiple trigger modes including bus, status, data alignment, data width and distributed queue
• 100MHz logic analyzer - 20S/s-2GS/s sample rate (real time), 16 channels and record length of 4M points
• Horizontal scale (s/div) - 2ns/div~100s/div, step by 1~2~5
• 2M record length
• 8 bit vertical resolution (A/D) (2 channels simultaneously)
• 2mV/div~10V/div vertical resolution (A/D)
• Edge, video, alternatie, pulse and slope trigger modes
• Normal, peak detect and average acquisition modes
• 4 waveform storage
• Dimensions - 370 x 180 x 120mm
• Device weight - 2.2kg

Tartalom

Mixed Signal Oscilloscope, 2x Passive Probes, Passive Probe Manual, Logic Analyzer Measurement Module, Module Instructions, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords

Megjegyzések

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
