781445-02

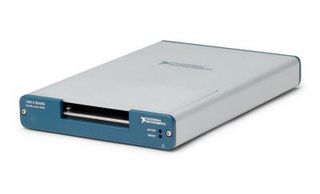

781445-02 is a USB-6366 simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, and four 82bit counters/timers for PWM, encoder, frequency, event counting, and more. Onboard NI-STC8 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The USB-6866 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

• 16bits analog input resolution
• 2MS/s/ch maximum sample rate
• Dual analog output channels, 8 maximum number of differential analog input channels
• 3.33MS/s/ch maximum update rate
• USB 2.0 bus connector
• 4 number of counters/timers
• 24 number of bidirectional digital channels
• 2688μV analog input absolute accuracy
