783848-01

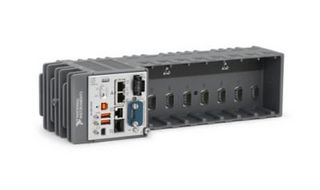

783848-01 is a cRIO-9035 1.33GHz dual-core CPU, 1GB DRAM, 4GB storage, and Kintex-7 70T FPGA, 8-slot CompactRIO controller. It is a rugged, fanless, embedded controller that you can use for advanced control and monitoring applications. This software-designed controller features an FPGA, a real-time processor running the NI Linux Real-Time OS, and embedded user interface capability. Users also can use the Mini DisplayPort to add a local human machine interface (HMI) for application development. Additionally, the cRIO-9035 features an SDHC slot and a variety of connectivity ports, including two tri-speed RJ-45 Gigabit Ethernet, two USB hosts, one USB device, and two RS-232 serial. The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a worldwide basis.

• Operating temperature range from -20°C to 55°C
• Ethernet, RS-232, RS-485/422, USB interface type
