HIRK-433F

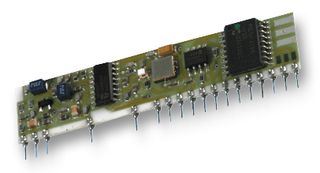

HIRK-433F is an Low power Rx decoder FM 433MHz. A range of miniature single in line (SIL) hybrid modules providing complete four channel radio receiver/decoder systems available in either AM or FM. When used with the 110-AM or 120-FM series pocket keyfobs, A complete remote telemetry system is obtained with up to 150 meters range. The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded microcontroller decoding a highly secure Keeloq protocol signal. The module has an easy-to-use 'LEARN' facility and is capable of learning up to 50 unique keyfob encoders. The module requires a 5V power supply and provides a direct LED drive showing data reception and four digital data outputs. The outputs may be programmed for momentary or latching configuration. The modules have flash re-programmability feature to enable field re-programming of the controller.

• Low power FM 433MHz Rx decoder
• Advanced Keeloq decoding
• Advanced laser trimmed ceramic module
• AM range up to 100 meters
• FM range up to 150 meters
• Easy learn transmitter feature
• Outputs, momentary or latching & serial data
• Direct led drive shows data reception
• Flash re-programmable
• HIR6 low power version (<lt/>1mA)

Alkalmazások

Communications & Networking, Industrial, Wireless, Security, RF Communications
