9250

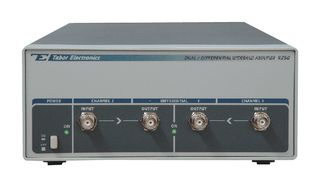

9250 is a bench-top, 2U, half 19" rack size, fully metal case dual channel amplifier. The instrument can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The amplifier case was designed to stack on top or below other Tabor products. It also can be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

• Large signal bandwidth to 15MHz
• Small signal bandwidth to 30MHz
• High amplitude to 40Vp-p (into high impedance)
• Slew rate to 200V/µs
• Low distortion
• Custom configuration of gain, input impedance, output impedance, output configuration

Megjegyzések

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
