T01-0580-S04

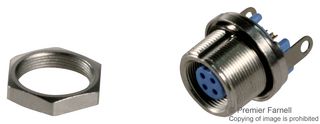

The T01-0580-S04 is a 4-way Right Angle Shielded Circular Socket with gold-plated contacts, a CuZn shell and solder termination. The T01 panel mount subminiature connector is a liquid and dust tight system, can be used for application where shielding is a requirement, it accepts 24AWG wire. There is also good resistance against UV beams because of the Optaloy plating for all metal shell parts. The reasonable shielding, the small diameters, the over-moulded connector with cable and the use of metallic parts makes TRIADTM01 also usable in harsh environments such as a factory.

• Sealed environment protection
• PBT insert
• UL94V-2 Flammability rating
• IP65 Protection rating
• <lt/>6mΩ Contact resistance
• 60VAC Voltage rating
• 625VAC Test voltage
• -40 to 85°C Operating temperature range

Alkalmazások

Industrial, Safety, Medical
