76-1544

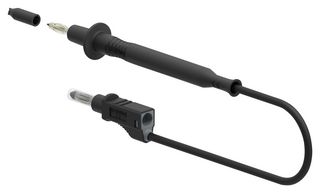

The 76-1544 from Tenma is a black colour 4mm banana tip probe to stacking retractable sleeve 4mm male banana plug lead. It is used to get a safe probe from single port 4mm banana jacks, sockets and binding posts and it is also used for general purpose electric testing, controlling and measuring. The lead has electrical safety according to EN/IEC 61010-031:2008. 600V CAT II, reinforced insulation, 12A (at +40°C). The design and material of the lantern contact springs meet the needs of low resistance and reliability. It features double jacket wire to offer a wire wear indicator.

• Visible length of wire is 1 meter (100cm)
• Cross-section of 0.75mm²
• Insulating gray grip to prevent accidental contact
• Pollution degree 1 or 2
• Operating temperature range from -20°C to +80°C
• Nickel coated brass and red annealed copper and steel conductors
• PVC wire jacket
• European union markings on lead
• 12 month limited warranty *view Terms & Conditions for details

Figyelmeztetések

Keep behind the barriers of alligator clip to operate safely while connecting to hazardous live voltages (more than 33VAC and 70VDC).
