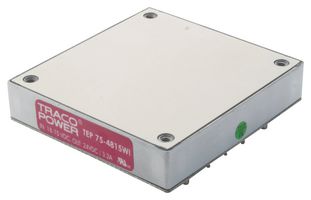

TEP 75-2412WI

The TEP 75-2412WI is a 1-output DC to DC Converter with ultra wide 4:1 input voltage ranges. The TEP-75WI series 75W isolated high performance DC/DC converter module is suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also a unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating. The very wide input voltage range and reverse input voltage protection make this converter also an interesting solution for battery operated systems.

• Rugged, compact metal case
• EN 50155 approval for railway applications
• Output voltage trimming
• Remote on/off
• Under-voltage lockout
• Reverse input voltage protection
• Input protection filter

Alkalmazások

Power Management, Industrial
