750-430

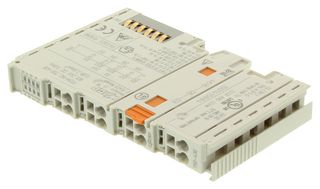

The 750-430 from Wago is a light gray colour, 8 channel digital input module with high side switching and 1-conductor connection. It receives control signals from digital field devices (sensors, transmitters, switches or proximity switches). Each input module has a noise rejection filter and filter is available with different time constants. Field and system levels are electrically isolated. This input module is approved by UL 508, ANSI/ISA 12.12.01 and ATEX/IECEx standards.

• Voltage rating of 24VDC via power jumper contacts (-25% to 30%)
• 3.0ms input filter
• Internal current consumption of 17mA
• Signal voltage (0) of -3VDC to 5VDC and signal voltage (1) of 15VDC to 30VDC
• Typical input current of 2.8mA
• CE conformity marking
• IP20 degree of protection
• CAGE CLAMP connection technology and 35mm DIN rail mounting
• Dimension is 12mm x 64mm x 100mm (W x H x L)
• Operating temperature range from 0°C to 55°C

Alkalmazások

Automation & Process Control, Industrial

Figyelmeztetések

The device is equipped with electronic components that may be destroyed by electrostatic discharge when touched. Please observe safety precautions as per DIN EN 61340-5-1/-3 while handling the device.

Megjegyzések

All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work.
