RN-42-EK

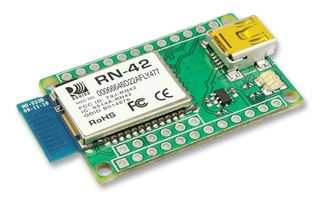

RN-42-EK is a fully certified Class 2 Bluetooth evaluation kit for the RN42-I/RM module. RN-42-SM is a though hole, low power and highly flexible Bluetooth socket module . This module supports DUN and HCI Bluetooth interface protocols, is simple to design in and fully certified. With its high performance on chip antenna and support for Bluetooth Enhanced Data Rate (EDR), the RN-42 delivers up to 3Mbps data rate for distances to 20M. It has the flexibility to connect directly to a PC via a standard USB interface or to embedded processors through the TTL UART interface. The status LEDs, switches, and signal headers enable rapid prototyping and integration into existing systems.

• Evaluation board with USB interface
• Fully certified Bluetooth 2.1 + EDR/2.1/2.0/1.1 module
• Low power (8mA to 30mA connected, 2mA idle)
• Embedded Bluetooth stack profiles included (requires no host stack)
• Supports various modes including HCI and DUN
• FCC, IC, CE certified

Alkalmazások

Communications & Networking, Wireless, Industrial, Sensing & Instrumentation, Medical, System Monitoring

Tartalom

Board, Cable.

Megjegyzések

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
